NPT FLOATING BALL VALVE (NPTFBV1/NPTFBV2)
　STANDARD COMPLIANCE
Content Standard
　　　　Design and Manufacturing standard API608/BS5351
　　　　Pressure-Temperature rating ASME B16.34
　　　　Face to Face Dimensions API608/MFG.STD.
　　　　Threaded (NPT)Ends ands Dimensions ASME B16.11/ASME B 1.20.1
　　　　Inspection and test API598
　　　　Size range 1/2"~4"
　　　　Pressure Range 150 Lb~1500 Lb

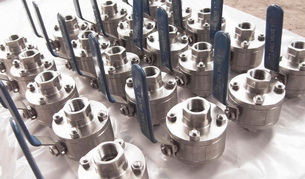

SBV NPT Floating Ball Valves have 2 structures: 2-pc and 3-pc design, male or female threaded ends, RPTFE,DERLIN,NYLON and PEEK seats. Different materials for seats, gaskets and packing may be chosen according to different working conditions.

1. 1/4" turning for opening or closing.
2. Blow out proof stem
3. Fire Safe Design
4. Anti-Static Design
5. Full pore or reduced port
5. Top working flange is designed according to ISO5211 (if design is allowed)
6. Screwed Ends (NPT) to ANSI/ASME B1.20.1 or ANSI/ASME B16.11
7. Socket Welded Ends (SW) to ANSI/ASME B16.11
